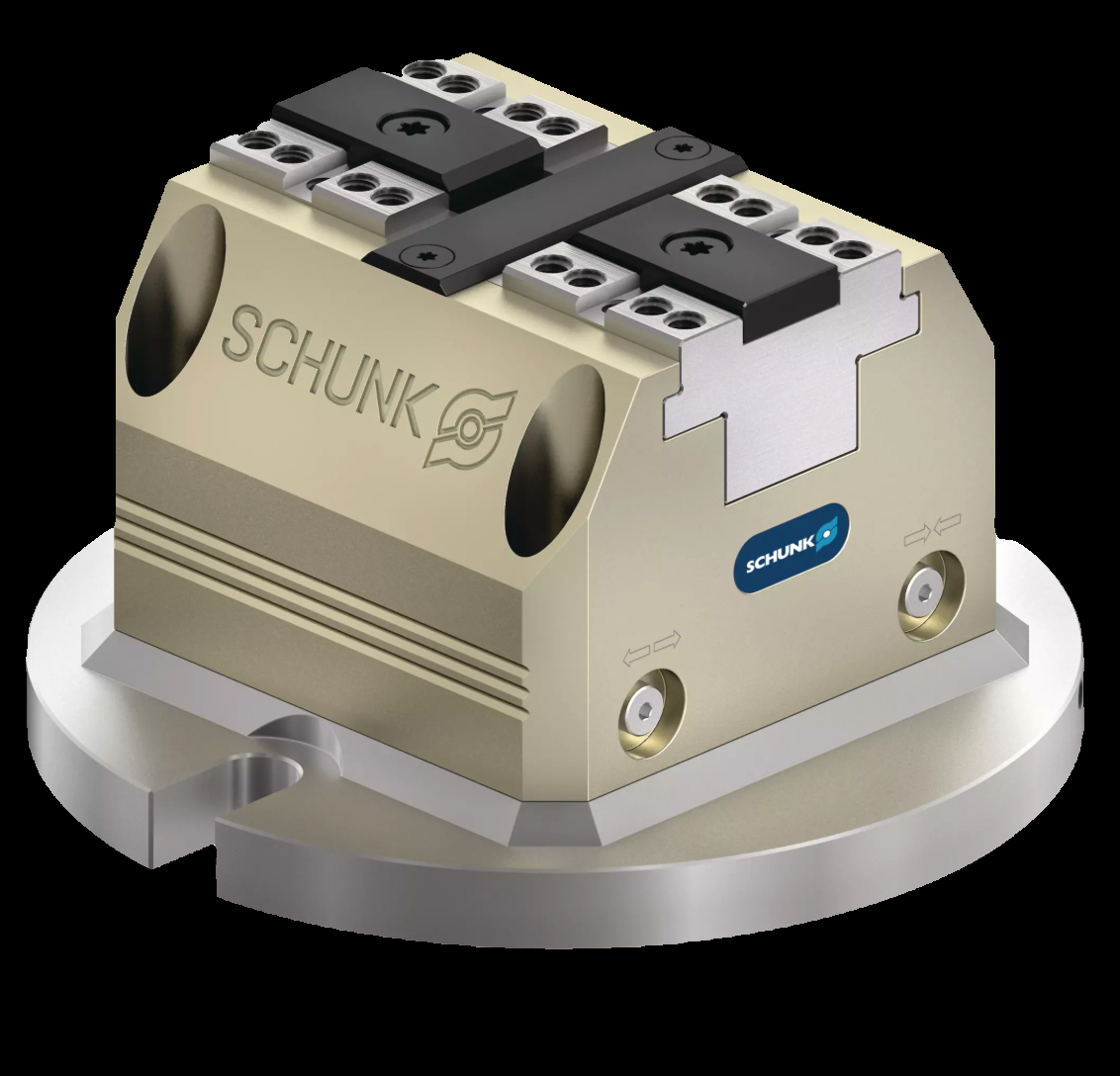

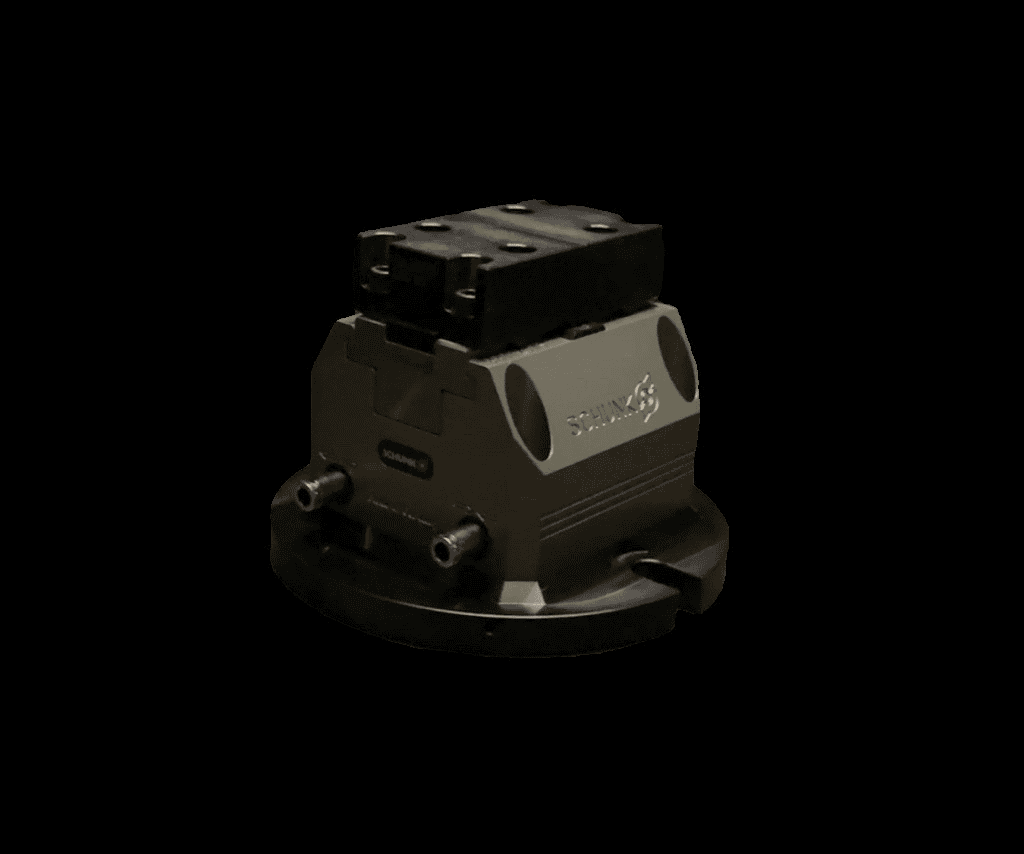

Schunk PGS3 100
Pneumatic 2-jaw clamping force blocks
Product features:
- Centric clamping
- Standard stroke
Technical data:
- Dimensions: 100 x 100 x 87,7 mm
- Clamping force at max. operating pressure: 10 kN
- Stroke per jaw: 2 mm
- Max. jaw height: 30 mm
- Repeat accuracy: 0.01 mm
- Operating pressure: 2 - 6 bar
- Air consumption per double stroke at 6 bar: 1000 cm³
- Weight: 5 kg

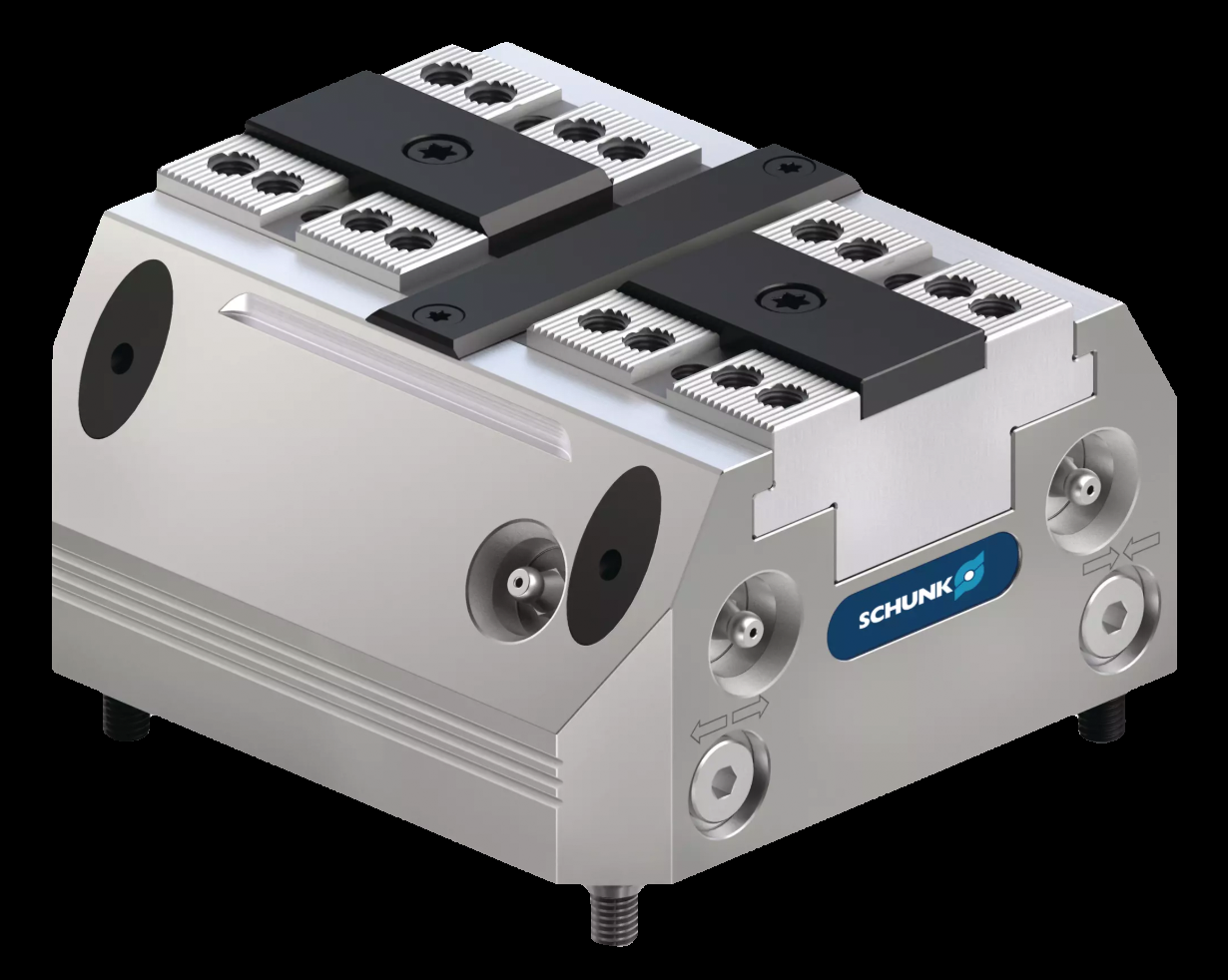

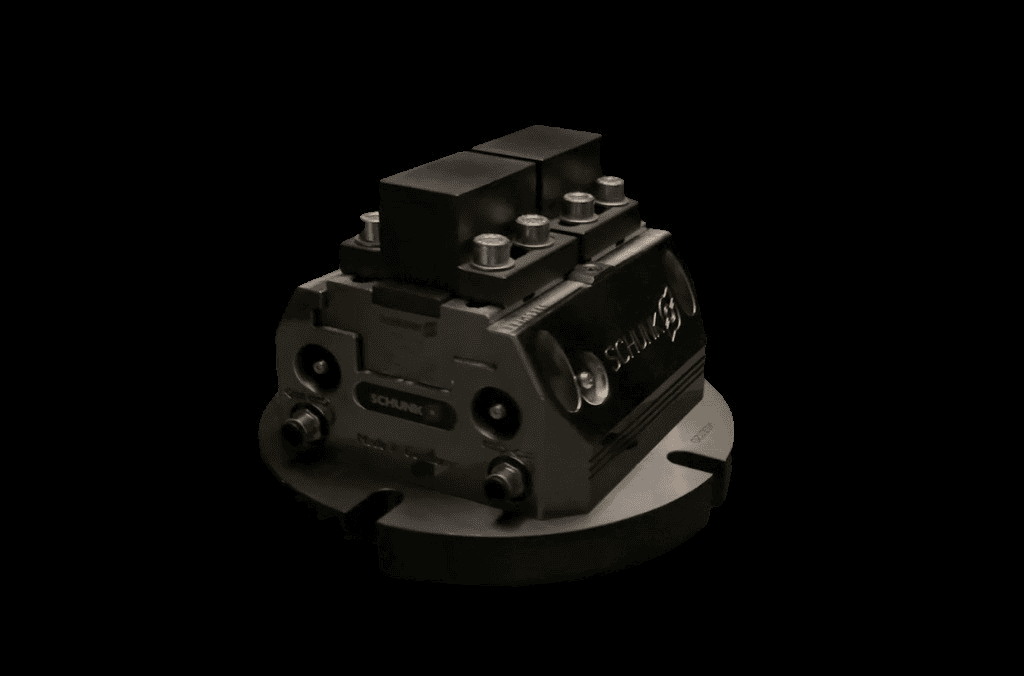

Schunk KSP3 140
Pneumatic 2-jaw clamping force block
Product features:
Technical data:
- 2-jaw clamping force block
- Centric clamping
- Standard stroke
- Base jaws: Fine serration and tongue and groove
- Dimensions: 140 x 140 x 72,7 mm
- Clamping force at max. operating pressure: 30 kN
- Stroke per jaw: 3 mm
- Max. jaw height: 60 mm
- Repeat accuracy: 0.01 mm
- Operating pressure: 2 - 9 bar
- Air consumption per double stroke at 6 bar: 2300 cm³
- Closing/opening time: 0.3 s
- Weight: 7.1 kg

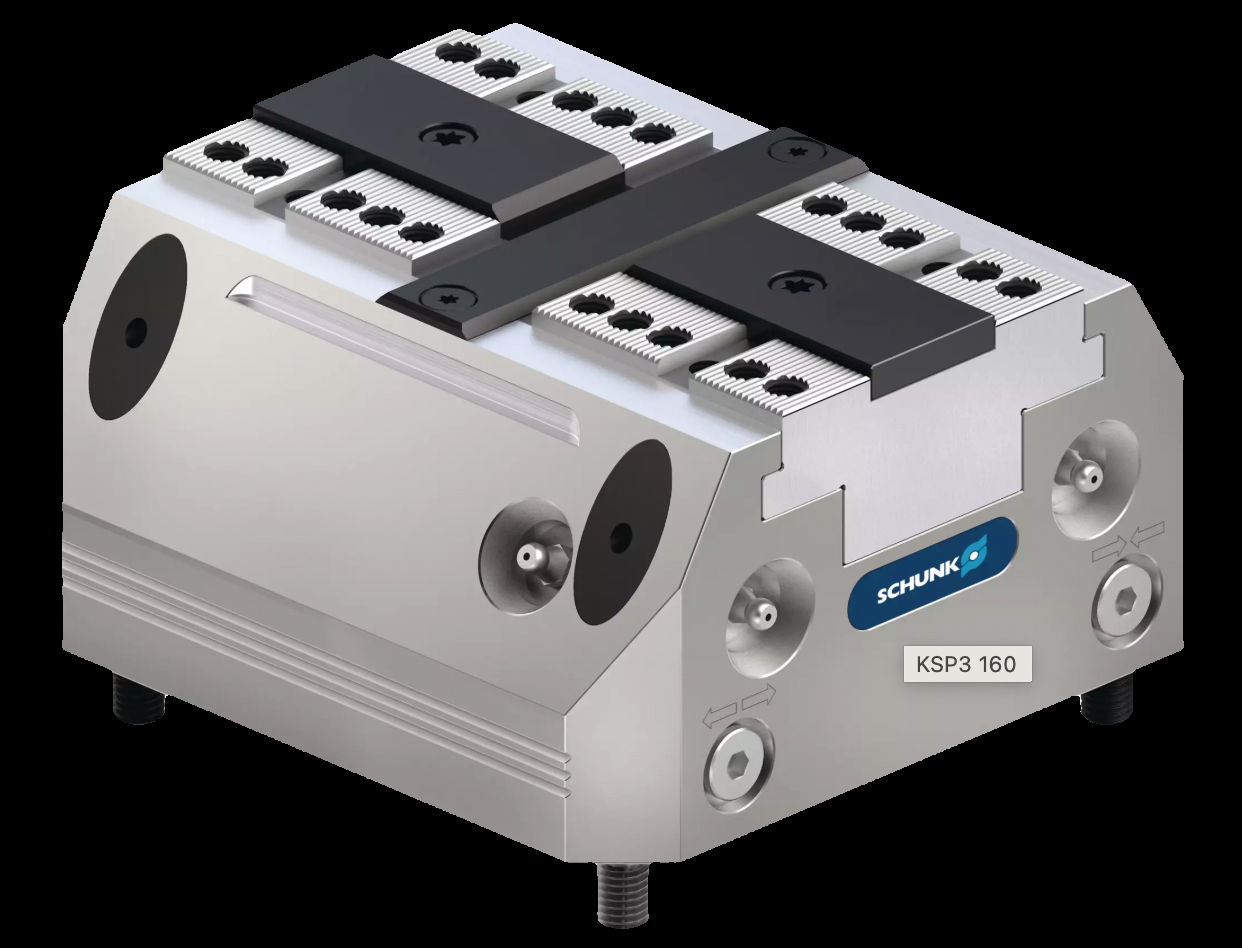

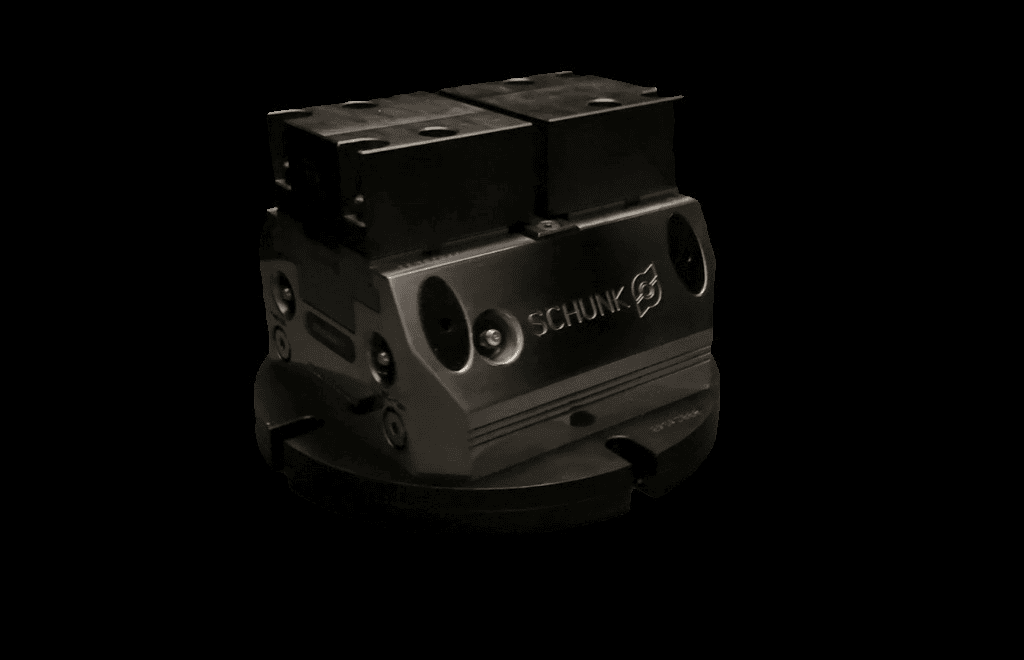

Schunk KSP3 160
Pneumatic 2-jaw clamping force blocks
Product features:
- 2-jaw clamping force block
- Centric clamping
- Standard stroke
- Base jaws: Fine serration and tongue and groove
- Dimensions: 160 x 160 x 82,2 mm
- Clamping force at max. operating pressure: 45 kN
- Stroke per jaw: 3 mm
- Max. jaw height: 60 mm
- Repeat accuracy: 0.01 mm
- Operating pressure: 2 - 9 bar
- Air consumption per double stroke at 6 bar: 3400 cm³
- Closing/opening time: 0.4 s
- Weight: 11 kg
